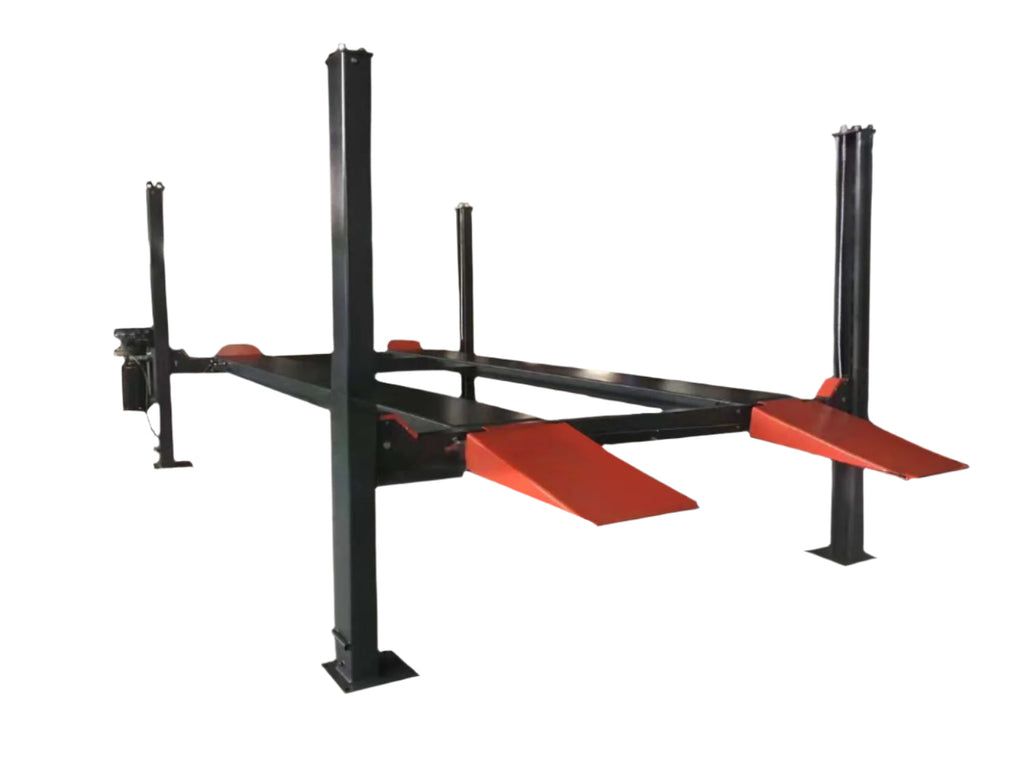

Katool KT-4H110 11,000 LB Four Post Parking Lift – Heavy-Duty Strength Meets Versatile Functionality
The Katool KT-4H110 is built for serious lifting. With an 11,000 lb capacity, this four-post lift is perfect for parking, servicing, and storing large vehicles—including trucks, SUVs, and fleet vans. Whether you're expanding your shop or upgrading your home garage, the KT-4H110 delivers exceptional performance and peace of mind.
Certified to CE standards, the lift is designed to meet 115% dynamic and 150% static load capacity requirements for maximum safety. Its single-point manual lock release and four mechanical safety locking systems provide robust security during operation, while the non-skid diamond runways and adjustable safety ladders ensure adaptability for various vehicle sizes.
A power-side column offers flexible installation options—front, rear, or side—to suit your workspace. With included drip trays and jack tray, the KT-4H110 makes maintenance cleaner and easier. Need mobility? Add the optional caster kit for shop repositioning anytime.
⚠ Installation Note: Requires a minimum concrete thickness of 3.93" (100 mm) at 3,000 PSI. Always verify conditions prior to setup for safety.
| Product Features |
|---|
| 11,000 lb lifting capacity – Built for large vehicles and heavy-duty use |
| CE Approved and Certified – Meets rigorous load testing standards |
| Manual single-point lock release for quick, secure operation |
| Four mechanical safety locks with dual protection mechanisms |
| Non-skid diamond platforms provide excellent traction |
| Adjustable lock ladder system accommodates different heights and vehicle sizes |
| Power-side column can be installed front, rear, or either side |

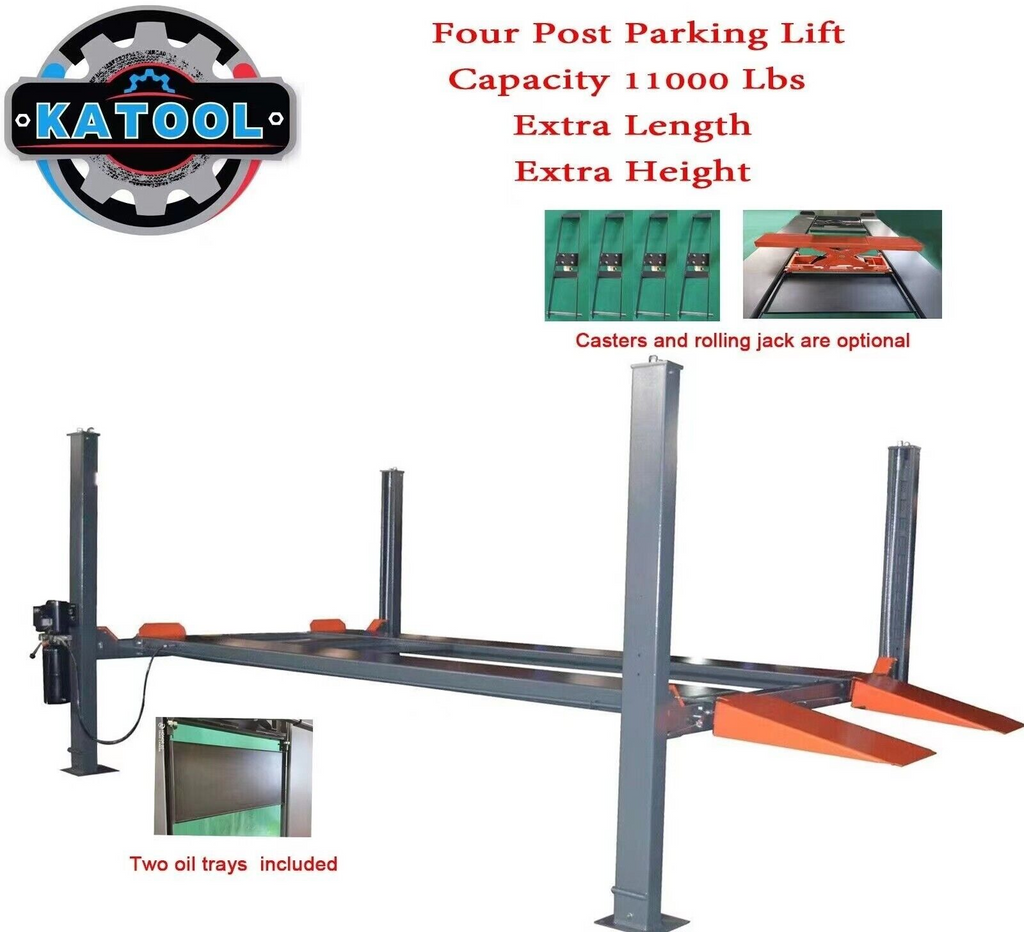

| Two drip trays and jack tray included for added utility |
| Optional caster kit and rolling jacks available (sold separately) |
| Hydraulic system available in 110V (standard) or 220V (optional) |
|
 |
| Specification | Details |
|---|---|
| Lifting Capacity | 11,000 lbs / 4,990 kg |
| Max. Lifting Height | 84.25 in / 2,140 mm |
| Minimum Runway Height | 6.2 in / 157 mm |
| Height of Posts | 94.88 in / 2,410 mm |
| Width Overall | 126 in / 3,200 mm |
| Inside Columns Width | 112.81 in / 2,865 mm |
| Length Overall (with ramps) | 229.73 in / 5,835 mm |
| Lifting Time | 83 sec up / 40 sec down |
| Motor | 110V / 60Hz / 1PH (220V optional) |
| Net Weight | 2,116 lbs / 960 kg |
Upgrade your lifting power with the Katool KT-4H110, available now at Katoolpro.com—your trusted supplier of high-performance vehicle lifts and automotive equipment.
